LibGDX Tutorial - Create a character and make him move (How To 6)

In this point i would like to say a big thanks to William Mora for his excellent libGDX tutorials. You might see similarities in the box2D parts of  the tutorials, because i adopted his style of developing with libGDX.

How to create a character and make him move using box2D and libGDX

After creating our ground and walls, we will create our character and after that we will make him move, jump and slide! In the " WorldMisc " class, we create our character, the same way we did with our ground and walls.

package com.getest.game.misc;

import com.badlogic.gdx.math.Vector2;
import com.badlogic.gdx.physics.box2d.Body;
import com.badlogic.gdx.physics.box2d.BodyDef;
import com.badlogic.gdx.physics.box2d.FixtureDef;
import com.badlogic.gdx.physics.box2d.PolygonShape;
import com.badlogic.gdx.physics.box2d.World;
import com.getest.game.box2d.GroundUserData;
import com.getest.game.box2d.LeftWallUserData;
import com.getest.game.box2d.RightWallUserData;

public class WorldMisc {

    //Rest of the code

    public  Body createHero(World world) {

        BodyDef hero = new BodyDef();
        hero.type = BodyDef.BodyType.DynamicBody;
        hero.position.set(new Vector2(8F, 2F));
        PolygonShape heroShape = new PolygonShape();
        heroShape.setAsBox(0.4F, 0.8F);
        Body body = world.createBody(hero);
        FixtureDef heroFixture = new FixtureDef();
        heroFixture.density = 0.5F;
        heroFixture.shape = heroShape;
        heroFixture.friction = 0.0F;
        body.createFixture(heroFixture);
        body.setGravityScale(5F);
        body.resetMassData();
        body.setUserData(new HeroUserData(0.8F, 1.4F));
        heroShape.dispose();
        return body;
    }
}

The difference is that our character is a dynamic body and he is placed in the middle of the screen, just above the ground. I created the fixture a bit different to show you your options. For example, i have defined a zero friction  and a gravity scale. The usage of the gravity scale is for the jump to look smoother and more realistic. You will see the result later, after we create the jumping movement.

Next step as always, is to define a HERO type in the " UserDataType " class;

package com.getest.game.enums;

public enum UserDataType {

    GROUND,
    LEFTWALL,
    RIGHTWALL,
    HERO;

    private UserDataType() {

    }
}

And finally in the " box2d " package, we must create a " HeroUserData " class with the below code;

package com.getest.game.box2d;

import com.getest.game.enums.UserDataType;

public class HeroUserData extends UserData {

    public HeroUserData(float width, float height) {

        super(width, height);
        userDataType = UserDataType.HERO;

    }
}

Don't forget to go back to the WorldMisc  class and import the HeroUserData class that we have just created.

Finally, go to our " GameStage " class and call the function we have created, to actually create our character.

package com.getest.game.stages;

import com.badlogic.gdx.graphics.OrthographicCamera;
import com.badlogic.gdx.physics.box2d.Body;
import com.badlogic.gdx.physics.box2d.Box2DDebugRenderer;
import com.badlogic.gdx.physics.box2d.World;
import com.badlogic.gdx.scenes.scene2d.Stage;
import com.badlogic.gdx.utils.viewport.ExtendViewport;
import com.getest.game.camera.AndroidCamera;
import com.getest.game.misc.WorldMisc;

public class GameStage extends Stage{

    private float accumulator, TIME_STEP;
    private Box2DDebugRenderer renderer;
    private WorldMisc wrl;
    private World world;
    private Body ground,leftWall,rightWall,hero;

    public GameStage(){

        super(new ExtendViewport(16f, 9f, new AndroidCamera(16f, 9f)));
        accumulator = 0.0F;
        TIME_STEP = 1/300F; // Recomended by libgdx
        setupWorld();

    }

    private void setupWorld() {

        wrl = new WorldMisc();
        world = wrl.createWorld();
        renderer = new Box2DDebugRenderer();
        setupGround();
        setupLeftWall();
        setupRightWall();
        setupHero();

    }

    private void setupGround(){
        ground = wrl.createGround(world);
    }

    private void setupLeftWall(){
        leftWall = wrl.createLeftWall(world);
    }

    private void setupRightWall(){
        rightWall = wrl.createRightWall(world);
    }

    private void setupHero() {
        hero = wrl.createHero(world);
    }

    // Rest of the code

}

Until now, we haven't made anything new. We just followed the same procedure as we did in the How To 5 tutorial to create our ground and walls. Run the game and you should get this;

Box2D world with a character

What do we have until now? We have made a game screen using scene2D, but because we wanted to manipulate the stage, we also created a game stage that extends scene2D's stage. In this stage we are using box2D to create our game world. To create the movement, we will also manipulate the scene2D's actors. Create an " actors " package and inside create a class with the name
" GameActors ".

package com.getest.game.actors;

import com.badlogic.gdx.math.Rectangle;
import com.badlogic.gdx.physics.box2d.Body
;import com.badlogic.gdx.scenes.scene2d.Actor;
import com.getest.game.box2d.UserData;

public abstract class GameActors extends Actor {

    protected Body body;
    protected UserData userData;

    public GameActors(Body body) {
        this.body = body;
        this.userData = (UserData)body.getUserData();
    }

    public abstract UserData getUserData();
}

The next step is to create 4 classes with names " GroundActor ", " LeftWallActor ",

" RightWallActor " and " HeroActor " inside the " actors " package and place these parts of codes in each respectively;

package com.getest.game.actors;

import com.badlogic.gdx.physics.box2d.Body;
import com.getest.game.box2d.GroundUserData;

public class GroundActor extends GameActors {

    public GroundActor(Body body) {
        super(body);
    }

    public GroundUserData getUserData() {
        return (GroundUserData) userData;
    }

}

package com.getest.game.actors;

import com.badlogic.gdx.physics.box2d.Body;
import com.getest.game.box2d.LeftWallUserData;

public class LeftWallActor extends GameActors {

    public LeftWallActor(Body body) {
        super(body);
    }

    public LeftWallUserData getUserData() {
        return (LeftWallUserData) userData;
    }

}

package com.getest.game.actors;

import com.badlogic.gdx.physics.box2d.Body;
import com.getest.game.box2d.RightWallUserData;

public class RightWallActor extends GameActors {

    public RightWallActor(Body body) {
        super(body);
    }

    public RightWallUserData getUserData() {
        return (RightWallUserData) userData;
    }

}

package com.getest.game.actors;

import com.badlogic.gdx.physics.box2d.Body;
import com.getest.game.box2d.HeroUserData;

public class HeroActor extends GameActors {

    public HeroActor(Body body) {
        super(body);
    }

    public HeroUserData getUserData() {
        return (HeroUserData)userData;
   }

}

Once again, go back to our " GameStage ", where we must make some changes. Instead of just creating our game bodies, the ground, the walls and the hero, we will create the actors with these bodies and add them to the stage!

package com.getest.game.stages;

import com.badlogic.gdx.graphics.OrthographicCamera;
import com.badlogic.gdx.physics.box2d.Box2DDebugRenderer;
import com.badlogic.gdx.physics.box2d.World;
import com.badlogic.gdx.scenes.scene2d.Stage;
import com.badlogic.gdx.utils.viewport.ExtendViewport;
import com.getest.game.actors.GroundActor;
import com.getest.game.actors.HeroActor;
import com.getest.game.actors.LeftWallActor
;import com.getest.game.actors.RightWallActor;
import com.getest.game.camera.AndroidCamera;
import com.getest.game.misc.WorldMisc;

public class GameStage extends Stage{

    private float accumulator, TIME_STEP;
    private Box2DDebugRenderer renderer;
    private WorldMisc wrl;
    private World world;
    private GroundActor ground;
    private LeftWallActor leftWall;
    private RightWallActor rightWall;
    private HeroActor hero;

    public GameStage(){

        super(new ExtendViewport(16f, 9f, new AndroidCamera(16f, 9f)));
        accumulator = 0.0F;
        TIME_STEP = 1/300F; // Recomended by libgdx
        setupWorld();

    }

    private void setupWorld() {

        wrl = new WorldMisc();
        world = wrl.createWorld();
        renderer = new Box2DDebugRenderer();
        setupGround();
        setupLeftWall();
        setupRightWall();
        setupHero();

    }

    private void setupGround(){
        ground = new GroundActor(wrl.createGround(world));
        addActor(ground);
    }

    private void setupLeftWall(){
        leftWall = new LeftWallActor(wrl.createLeftWall(world));
        addActor(leftWall);
    }

    private void setupRightWall(){
        rightWall = new RightWallActor(wrl.createRightWall(world));
        addActor(rightWall);
    }

    private void setupHero() {
        hero = new HeroActor(wrl.createHero(world));
        addActor(hero);
    }

    @Override
    public void act(float delta) {

        super.act(delta);
        accumulator += delta;
        while (accumulator >= delta) {
            world.step(TIME_STEP, 8, 4);
            accumulator -= TIME_STEP;
        }

    }

    @Override
    public void draw() {
        super.draw();
        renderer.render(world, getViewport().getCamera().combined);
    }
}

Run the game! Nothing changed? Don't worry, this is just normal. All we did was to call the same functions but in another way, in order for us to implement the movement.

• For the jump, we have to apply an instantaneous force to our hero on the y - axis and then the gravity will do the rest. The gravity scale that we had set for our hero, changes the way gravity applies only to him and will make the jump look smoother. Instantaneous force basically means that we will apply an impulse which will be linear as well. We need to define this linear impulse.
• For the slide, we will just rotate our hero 90 degrees for a certain amount of time, thus we need to define the slide duration.
• And finally for the movement (we want to move with constant velocity), we will apply impulses as well (in every step of the simulation) but in way for the movement to be constant.

So, to begin with, we modify the " HeroUserData " class and we define the above variables, the getters and the setters.

package com.getest.game.box2d;

import com.badlogic.gdx.math.Vector2;
import com.getest.game.enums.UserDataType;

public class HeroUserData extends UserData {

    private Vector2 jumpingImpulse;
    private float slideDuration;
    private float speedImpulse;

    public HeroUserData(float width, float height) {

        super(width, height);
        jumpingImpulse = new Vector2(0,11F);
        slideDuration = 1.5F;
        speedImpulse = 5.0F;
        userDataType = UserDataType.HERO;

    }

    public void setJumpingImpulse(Vector2 jumpingImpulse) {
        this.jumpingImpulse = jumpingImpulse;
    }

    public void setSlideDuration(float slideDuration) {
        this.slideDuration = slideDuration;
    }

    public void setSpeedImpulse(float SpeedImpulse) {
        this.speedImpulse = speedImpulse;
    }

    public Vector2 getJumpingImpulse() {
        return jumpingImpulse;
    }

    public float getSlideDuration() {
        return slideDuration;
    }

    public float getSpeedImpulse() {
        return speedImpulse;
    }
}

Because this tutorial is getting too long, lets just implement the movement part and let the jump and the slide for the next one.

Go to the " HeroActor " java class where we must create the actual functions of the movement;

package com.getest.game.actors;

import com.badlogic.gdx.math.Vector2;
import com.badlogic.gdx.physics.box2d.Body;
import com.getest.game.box2d.HeroUserData;

public class HeroActor extends GameActors {

    private Vector2 velocityEachTime;
    private Vector2 movingLinearImpulse;
    private float velocityX;
    private float finalVel;

    public HeroActor(Body body) {
        super(body);
    }

    public HeroUserData getUserData() {
        return (HeroUserData) userData;
    }

    public void moveRight() {

        velocityEachTime = body.getLinearVelocity();
        velocityX = velocityEachTime.x;
        finalVel = getUserData().getSpeedImpulse() - velocityX;
        movingLinearImpulse = new Vector2(finalVel, 0.0F);
        body.applyLinearImpulse(movingLinearImpulse, body.getWorldCenter(), true);

    }

    public void moveLeft() {

        velocityEachTime = body.getLinearVelocity();
        velocityX = velocityEachTime.x;
        finalVel = -getUserData().getSpeedImpulse() - velocityX;
        movingLinearImpulse = new Vector2(finalVel, 0.0F);
        body.applyLinearImpulse(movingLinearImpulse, body.getWorldCenter(), true);

    }

    public void moveStop() {

        velocityEachTime = body.getLinearVelocity();
        velocityX = velocityEachTime.x;
        finalVel = 0.0F - velocityX;
        movingLinearImpulse = new Vector2(finalVel, 0.0F);
        body.applyLinearImpulse(movingLinearImpulse, body.getWorldCenter(), true);

    }

}

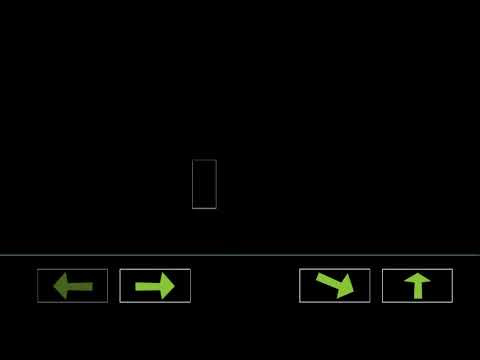

This will do the job. What we have to do next, is to create 2 buttons for the movement. Download the packed version of all the buttons we are gonna need. It would be better to pack them yourself (you know how to do it if you have followed all the tutorials until now).

Note;; Don't forget to first click on the image and then download it, to get the original size.

Create the .atlas file by just creating a .txt file, pasting the code below and saving the file as
" inGameButtons.atlas ".

size: 2048,512
format: RGBA8888
filter: Linear,Linear
repeat: none
jumpNorm
  rotate: false
  xy: 192, 2
  size: 188, 398
  orig: 188, 398
  offset: 0, 0
  index: -1
jumpPushed
  rotate: false
  xy: 2, 2
  size: 188, 398
  orig: 188, 398
  offset: 0, 0
  index: -1
leftNorm
  rotate: false
  xy: 1328, 3
  size: 186, 397
  orig: 186, 397
  offset: 0, 0
  index: -1
leftPushed
  rotate: false
  xy: 572, 2
  size: 187, 398
  orig: 187, 398
  offset: 0, 0
  index: -1
rightNorm
  rotate: false
  xy: 950, 2
  size: 187, 398
  orig: 187, 398
  offset: 0, 0
  index: -1
rightPushed
  rotate: false
  xy: 761, 2
  size: 187, 398
  orig: 187, 398
  offset: 0, 0
  index: -1
slideNorm
  rotate: false
  xy: 1139, 3
  size: 187, 397
  orig: 187, 397
  offset: 0, 0
  index: -1
slidePushed
  rotate: false
  xy: 382, 2
  size: 188, 398
  orig: 188, 398
  offset: 0, 0
  index: -1

Copy both files (the .png and the .atlas) inside the " skins " folder which is located in our " assets " folder, together with 2 .json files with names " leftButton.json " and  " rightButton.json " with the below codes respectively;

{

  "com.badlogic.gdx.scenes.scene2d.ui.ImageButton$ImageButtonStyle": {
    "default": {
      "up": "leftNorm",
      "down": "leftPushed",
      "unpressedOffsetY":-10

    }
  }
}

and

{

  "com.badlogic.gdx.scenes.scene2d.ui.ImageButton$ImageButtonStyle": {
    "default": {
      "up": "rightNorm",
      "down": "rightPushed",
      "unpressedOffsetY":-10

    }
  }
}

For the final step, we have to actually create the move buttons and upon clicking them, we must call the movement functions. The " GameStage " class now becomes;

package com.getest.game.stages;

import com.badlogic.gdx.Gdx;
import com.badlogic.gdx.graphics.OrthographicCamera;
import com.badlogic.gdx.graphics.g2d.TextureAtlas;
import com.badlogic.gdx.physics.box2d.Box2DDebugRenderer;
import com.badlogic.gdx.physics.box2d.World;
import com.badlogic.gdx.scenes.scene2d.InputEvent;
import com.badlogic.gdx.scenes.scene2d.Stage
;import com.badlogic.gdx.scenes.scene2d.ui.ImageButton;
import com.badlogic.gdx.scenes.scene2d.ui.Skin;
import com.badlogic.gdx.scenes.scene2d.utils.ActorGestureListener;
import com.badlogic.gdx.utils.viewport.ExtendViewport;
import com.getest.game.actors.GroundActor;
import com.getest.game.actors.HeroActor;
import com.getest.game.actors.LeftWallActor;
import com.getest.game.actors.RightWallActor;
import com.getest.game.camera.AndroidCamera;
import com.getest.game.misc.WorldMisc;

public class GameStage extends Stage{

    private float accumulator, TIME_STEP;
    private Box2DDebugRenderer renderer;
    private WorldMisc wrl;
    private World world;
    private GroundActor ground;
    private LeftWallActor leftWall;
    private RightWallActor rightWall;
    private HeroActor hero;
    private Boolean right = false, left = false;
    private Skin leftButtonSkin, rightButtonSkin;
    private ImageButton leftButton, rightButton;

    public GameStage(){

        super(new ExtendViewport(16f, 9f, new AndroidCamera(16f, 9f)));
        accumulator = 0.0F;
        TIME_STEP = 1/300F; // Recomended by libgdx
        setupWorld();

    }

    private void setupWorld() {

        wrl = new WorldMisc();
        world = wrl.createWorld();
        renderer = new Box2DDebugRenderer();
        Gdx.input.setInputProcessor(this);
        setupGround();
        setupLeftWall();
        setupRightWall();
        setupHero();
        setupButtons();

    }

    private void setupGround(){
        ground = new GroundActor(wrl.createGround(world));
        addActor(ground);
    }

    private void setupLeftWall(){
        leftWall = new LeftWallActor(wrl.createLeftWall(world));
        addActor(leftWall);
    }

    private void setupRightWall(){
        rightWall = new RightWallActor(wrl.createRightWall(world));
        addActor(rightWall);
    }

    private void setupHero() {
        hero = new HeroActor(wrl.createHero(world));
        addActor(hero);
    }

    private void setupButtons() {
        leftButtonSkin = new Skin(Gdx.files.internal("skins/leftButton.json"), new TextureAtlas(Gdx.files.internal("skins/inGameButtons.atlas")));
        rightButtonSkin = new Skin(Gdx.files.internal("skins/rightButton.json"), new TextureAtlas(Gdx.files.internal("skins/inGameButtons.atlas")));
        leftButton = new ImageButton(leftButtonSkin);
        rightButton = new ImageButton(rightButtonSkin);

        leftButton.setSize(2.35F, 5F);
        rightButton.setSize(2.35F, 5F);
        leftButton.setPosition(1.25F, -0.5F);
        rightButton.setPosition(4.0F, -0.5F);

        addActor(leftButton);
        addActor(rightButton);

        leftButton.addListener(new ActorGestureListener() {
            public void touchDown(InputEvent event, float x, float y, int pointer, int button) {
                left = true;
            }

            public void touchUp(InputEvent event, float x, float y, int pointer, int button) {
                left = false;
            }
        });

        rightButton.addListener(new ActorGestureListener() {
            public void touchDown(InputEvent event, float x, float y, int pointer, int button) {
                right = true;
            }

            public void touchUp(InputEvent event, float x, float y, int pointer, int button) {
                right = false;
            }
        });
    }

    @Override
    public void act(float delta) {

        super.act(delta);
        accumulator += delta;
        while (accumulator >= delta) {
            world.step(TIME_STEP, 8, 4);
            accumulator -= TIME_STEP;
        }

        if (left) {
            hero.moveLeft();
        } else if (right) {
            hero.moveRight();
        } else {
            hero.moveStop();
        }

    }

    @Override
    public void draw() {
        super.draw();
        renderer.render(world, getViewport().getCamera().combined);
    }
}

What we did extra was to set an input processor to our stage, we created the left and right buttons and we added listeners to them. As i mentioned before, to move with a constant velocity we need to apply impulses to our hero, on every step of the simulation. Upon clicking the left button, a Boolean variable left becomes true, and in the act function we call the moveLeft() function in order for our hero to move left. When we move our finger away from the button, the Boolean becomes false and our hero stops moving. Same goes with the right button.

Run the game and move your awesome hero! This actually is the same method i followed to make Black Dodger move!

Feel free to ask any questions in the comments below;
